Kubernetes 4 Service and Gateway
Service and Gateway in kubernetes

Service

apiVersion: v1                               # string: API version for Service resource
kind: Service                                # string: Type of resource
metadata:
  name: my-app-service                       # string: Name of the Service
  namespace: production                      # string: Namespace where the service is created
  labels:                                    # map[string]string: Metadata for organization
    app: my-app
    tier: backend
  annotations:                               # map[string]string: Optional metadata (e.g., for monitoring)
    prometheus.io/scrape: "true"
    prometheus.io/port: "9090"

spec:
  type: ClusterIP                            # string: Type of service (ClusterIP | NodePort | LoadBalancer | ExternalName)
  clusterIP: None                            # string: Use `None` to create a "headless" service (optional for direct pod access)

  selector:                                  # map[string]string: Selects the pods that this service targets
    app: my-app
    tier: backend

  ports:                                     # array: List of ports this service exposes
    - name: http
      protocol: TCP                          # string: Protocol for this port (TCP | UDP | SCTP)
      port: 80                               # int: Port that the service exposes inside the cluster
      targetPort: 8080                       # int or string: Port on the pod/container

    - name: metrics
      protocol: TCP
      port: 9090
      targetPort: 9090

    - name: grpc
      protocol: TCP
      port: 50051
      targetPort: grpc-port                  # targetPort can be a named port in the pod

  sessionAffinity: ClientIP                  # string: Session stickiness (None | ClientIP)
  sessionAffinityConfig:                     # object: Additional config for session affinity
    clientIP:
      timeoutSeconds: 10800                  # int: Timeout for client IP-based session (3 hours)

  ipFamilyPolicy: PreferDualStack            # string: IPv4/IPv6 support (SingleStack | PreferDualStack | RequireDualStack)
  ipFamilies:                                # array: Preferred IP protocol versions
    - IPv4
    - IPv6
  1. User call apiServer to create Service.
  2. apiServer writes a service information into etcd
  3. kube-proxy monitor the modifications of service in apiServer
  4. kube-proxy converts the service information to access rules(we use IPVS)

IPVS

IPVS mode = kernel-powered load balancing for Kubernetes Services.
It's faster, more flexible, and better for high-scale environments than iptables.

IPVS uses the Linux kernel's Layer 4 load balancer, which is faster and more efficient than iptables for large-scale environments.
- Handles traffic using connection tracking
- Scales better when managing thousands of services/endpoints
- Offers load balancing algorithms like:
- Round Robin
- Least Connection
- Weighted Round Robin
- Source Hashing, etc.

ClusterIP & Headless

Exposes the Service on a cluster-internal IP. Choosing this value makes the Service only reachable from within the cluster. This is the default that is used if you don't explicitly specify a type for a Service. You can expose the Service to the public internet using an Ingress or a Gateway.

Headless Service ClusterIP is not None
ClusterIP None Has Value
Load Balancer No, return all IPs Yes
DNS Return Pod's IPs (A records) Return clusterIP (single value)
For Accessing each pod Accessing service
Pod visibility Yes, every pod is visible No, only exposes service's IP

NodePort

Exposes the Service on each Node's IP at a static port (the NodePort). To make the node port available, Kubernetes sets up a cluster IP address, the same as if you had requested a Service of type: ClusterIP.

LoadBalancer

Exposes the Service externally using an external load balancer. Kubernetes does not directly offer a load balancing component; you must provide one, or you can integrate your Kubernetes cluster with a cloud provider.

apiVersion: v1
kind: Service
metadata:
  name: my-app-lb
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: "nlb"  # available values: nlb | clb
spec:
  type: LoadBalancer
  selector:
    app: my-app
  ports:
    - name: http
      port: 80
      targetPort: 8080
      protocol: TCP

ExternalName

Maps the Service to the contents of the externalName field (for example, to the hostname api.foo.bar.example). The mapping configures your cluster's DNS server to return a CNAME record with that external hostname value. No proxying of any kind is set up.
Supposed that there is a external database service, the IP is db.example.com, then you can create a service that could access the external service by external-db

apiVersion: v1
kind: Service
metadata:
  name: external-db                          # service name in Pod
  namespace: default
spec:
  type: ExternalName
  externalName: db.example.com               # Destination DNS name

Summary

Kubernetes Service Types Comparison

Type Has ClusterIP? Load Balancing? Public Access? Traffic Proxy? Typical Use Case
ClusterIP ✅ Yes ✅ Yes ❌ No (internal only) ✅ Yes Internal service-to-service communication
NodePort ✅ Yes ✅ Yes ✅ Yes (via Node IP) ✅ Yes Basic external access (e.g., dev/test)
LoadBalancer ✅ Yes ✅ Yes ✅ Yes (via cloud LB) ✅ Yes Production-grade public service
ExternalName ❌ No ❌ No ✅ Yes (DNS mapping) ❌ No Map to external DNS-based resource
Headless (None) ❌ No ❌ No ❌ No (internal DNS) ❌ No Direct pod access, StatefulSets

Ingress

Ingress is an API object in Kubernetes that manages external access to services, typically HTTP and HTTPS traffic.
It acts like a smart router or application-level load balancer that sits at the edge of your cluster.
Now, Ingress is frozen. New features are being added to the Gateway API.

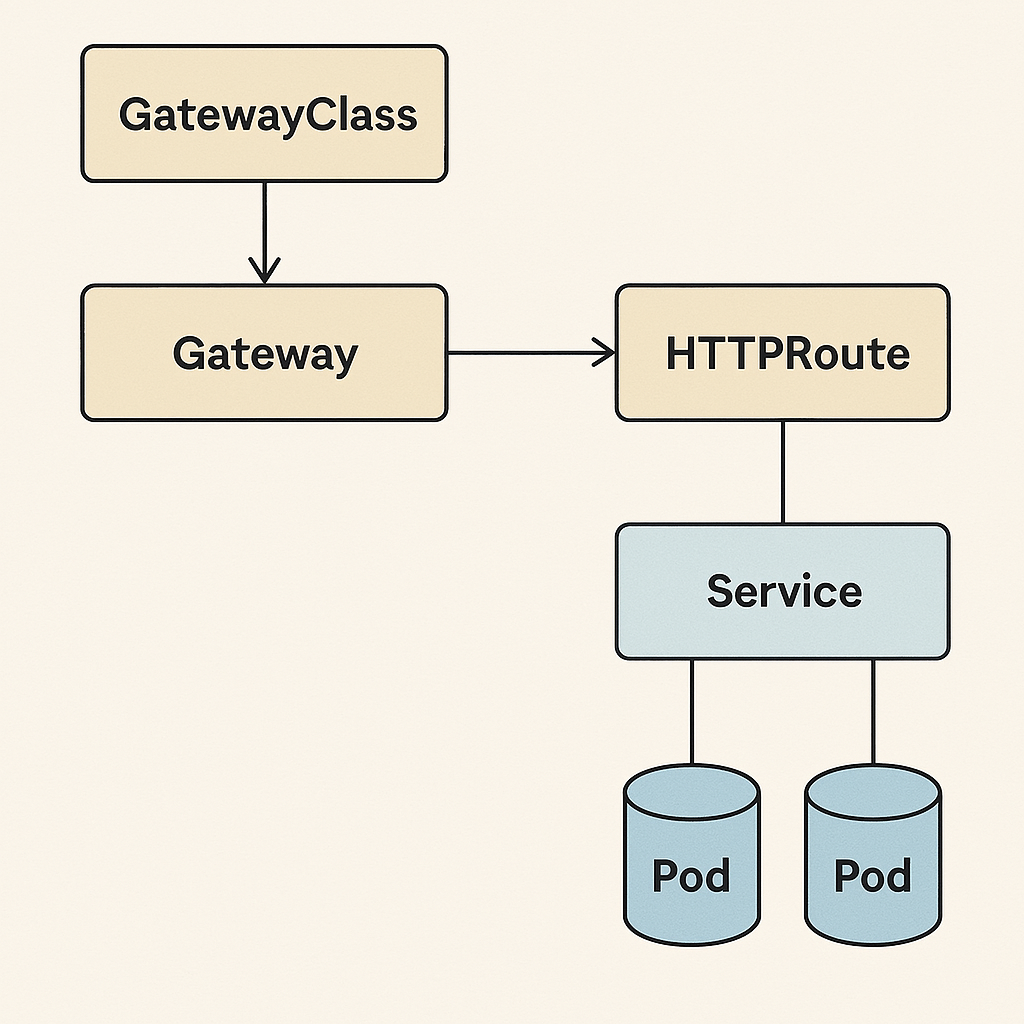

Gateway API

Gateway API is a Kubernetes networking API standard that defines how external traffic is routed into your cluster, similar to Ingress — but more powerful, modular, and extensible.

It introduces a new set of custom resource definitions (CRDs) such as:

  • Gateway
  • GatewayClass
  • HTTPRoute, TCPRoute, TLSRoute, etc.
  • ReferenceGrant (cross-namespace permissions)

GatewayClass

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: my-nginx-gateway-class
spec:
  controllerName: nginx.org/gateway-controller

Gateway

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: my-gateway
spec:
  gatewayClassName: my-nginx-gateway-class
  listeners:
    - name: http
      protocol: HTTP
      port: 80
      allowedRoutes:
        namespaces:
          from: All

HTTPRoute / TCPRoute / TLSRoute

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: my-app-route
spec:
  parentRefs:
    - name: my-gateway
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /
      backendRefs:
        - name: my-app-service
          port: 80
